Measure the event zone
Confirm clear route width and height separately from the outside truss dimensions. Include timing mats, barricade feet, cones, camera positions, emergency access and any vehicle or cycling clearance.
Sports advertising installation guide
Start & Finish Gantry Truss installer Malaysia.
Branded truss gantry installation for running, cycling and public sports events, coordinated with the clear route, timing equipment, cameras and sponsor panels.
Commercial purpose
Design the structure around what spectators and cameras will see.
The gantry is both a route structure and one of the event’s most valuable photographed sponsor positions. Its clear opening must suit athletes and operations while its front, rear and side branding remains readable from the approach and finish photography.
This page covers a sports-event advertising application. The structural parent is Entrance Support, Arch & Gantry Truss; its actual truss profile and configuration are confirmed only after the complete brief is reviewed.
Common setup sizes
Start with the clear space.
6 m clear routeEnquiry reference; confirm clear and outside dimensions separately.
8 m clear routeEnquiry reference; confirm clear and outside dimensions separately.
10 m clear routeEnquiry reference; confirm clear and outside dimensions separately.
Custom multi-lane gantryEnquiry reference; confirm clear and outside dimensions separately.
Coordinate event operations
Agree whether one gantry serves both start and finish or separate structures are required. Installation and removal must fit road-closure, timing-contractor and organiser windows.
Sponsor visibility
Give every branding surface a job.
Reserve the top beam for the event or title sponsor, use side columns for secondary partners and consider a reverse face for finishers and post-race photography. Artwork must account for seams, ties and structural connections.
Distance recognition
Event identity and the highest-priority sponsor should read before participants reach the structure.
Eye-level branding
Side panels and columns work at closer range without reducing the required clear route.
Photo composition
Logo zones are checked against likely crops, podium positions, athlete scale and official angles.
Post-event view
The rear elevation may serve finishers, interviews, exits or a second audience direction.
Where it is used
Six suitable sports applications.
Marathon start line
Structure, graphics and installation sequence are matched to the sport, venue and organiser’s operating plan.
Race finish line
Structure, graphics and installation sequence are matched to the sport, venue and organiser’s operating plan.
Cycling gantry
Structure, graphics and installation sequence are matched to the sport, venue and organiser’s operating plan.
Triathlon transition
Structure, graphics and installation sequence are matched to the sport, venue and organiser’s operating plan.
Fun run arch
Structure, graphics and installation sequence are matched to the sport, venue and organiser’s operating plan.
Public sports carnival
Structure, graphics and installation sequence are matched to the sport, venue and organiser’s operating plan.
When to choose another format
undefined
Approximate Malaysia range
RM 2,500–RM 8,000+
Indicative structure-installation budget for early setup. It is not a fixed package and does not automatically include printed graphics, LED, lighting, timing systems, power, permits, engineering or event operators.
Non-binding setup reference · September 2026
Price variables
- Clear opening and total structure size
- Number and area of sponsor surfaces
- Truss, bases, towers and bracing
- Ground, ballast and outdoor exposure
- Timing, camera, screen and lighting interfaces
- Road closure or restricted setup time
- Transport, labour and rental duration
- Print, scenic and artwork scope
Installation workflow
From organiser plan to cleared site.
01Map the participant, vehicle and crowd routes
02Confirm clear and outside dimensions
03List branding material and surface area
04Collect timing, LED, camera and lighting data
05Review site, ground and weather exposure
06Coordinate crew and supplier sequence
07Erect, inspect and hand over the structure
08Dismantle within the approved closure window
Public-event boundary
Keep the sponsor structure outside the hazard route.
Clear openings, protected bases, ballast, cables, crowd barriers and emergency movement need to work together. Outdoor banners and screens also add wind-facing area; the structure should have agreed operating limits, weather monitoring and response authority.
Event organisers should confirm approvals and governing requirements for their specific sport. Website dimensions are setup references and do not certify a route or structure.
Review safety-setup questions →Why CK Event Management
Advertising visibility with installation reality.
01
Sports-zone setup
Athlete, crowd, camera and supplier routes are considered together.
02
Backdrop expertise
Print, LED, scenic and lighting layers can share one coordinated elevation.
03
Outdoor context
Ground, exposure, supports and event response are raised before installation.
04
Full lifecycle
Delivery, erection, handover, dismantling and collection can be included.
Installer questions
Start & Finish Gantry Truss FAQ.
What does start & finish gantry truss installation include?
A project can include compatible truss, connectors, bases, bracing, ballast or support components, transport, erection, handover, dismantling and collection. Branding, timing, LED, lighting, power and standby requirements must be itemised in the quotation.
What sizes are available for start & finish gantry truss?
Common setup requests include 6 m clear route, 8 m clear route, 10 m clear route, Custom multi-lane gantry. Final clear and outside dimensions follow the route, venue, branding, equipment and support footprint rather than a universal package size.
How much does start & finish gantry truss cost?
Use RM 2,500–RM 8,000+ as an indicative Malaysia setup band. Exact pricing requires the event date, site, size, branding surfaces, equipment, foundations or ballast, transport, labour and working schedule.
Can CK install start & finish gantry truss outdoors?
Outdoor installation can be considered after the structure, wind-facing materials, ground, support method, weather exposure, operating limits and event response have been assessed.
Who supplies the sponsor artwork and printing?
Send vector logos, sponsor hierarchy, finished artwork dimensions and material details. Design, print and installation responsibilities should be confirmed separately so the structure and attachment plan match the actual graphic.
Related sports branding
Plan another event zone.
01Marathon & Running Event Truss
A coordinated truss package for race starts, finishes, sponsor branding, stage backdrops, registration and medal-presentation areas.
Explore setup →
02Cycling Event Gantry Truss
Start, finish and sponsor gantry installation planned for bicycle clearance, peloton width, timing systems, cameras and controlled road access.
Explore setup →
03Motorsport Event Branding Truss
Sponsor gantries, podium backdrops, display portals and fan-zone truss for motorsport events, launches and circuit activations.
Explore setup →
04Sports Podium & Sponsor Backdrop Truss
Layered winner-stage and medal-presentation backdrops designed for sponsor visibility, official photos, LED content and ceremony flow.
Explore setup →
05Sports Fan-Zone LED Truss
Outdoor or indoor truss support for sports viewing screens, sponsor content, stage lighting and audience engagement zones.
Explore setup →

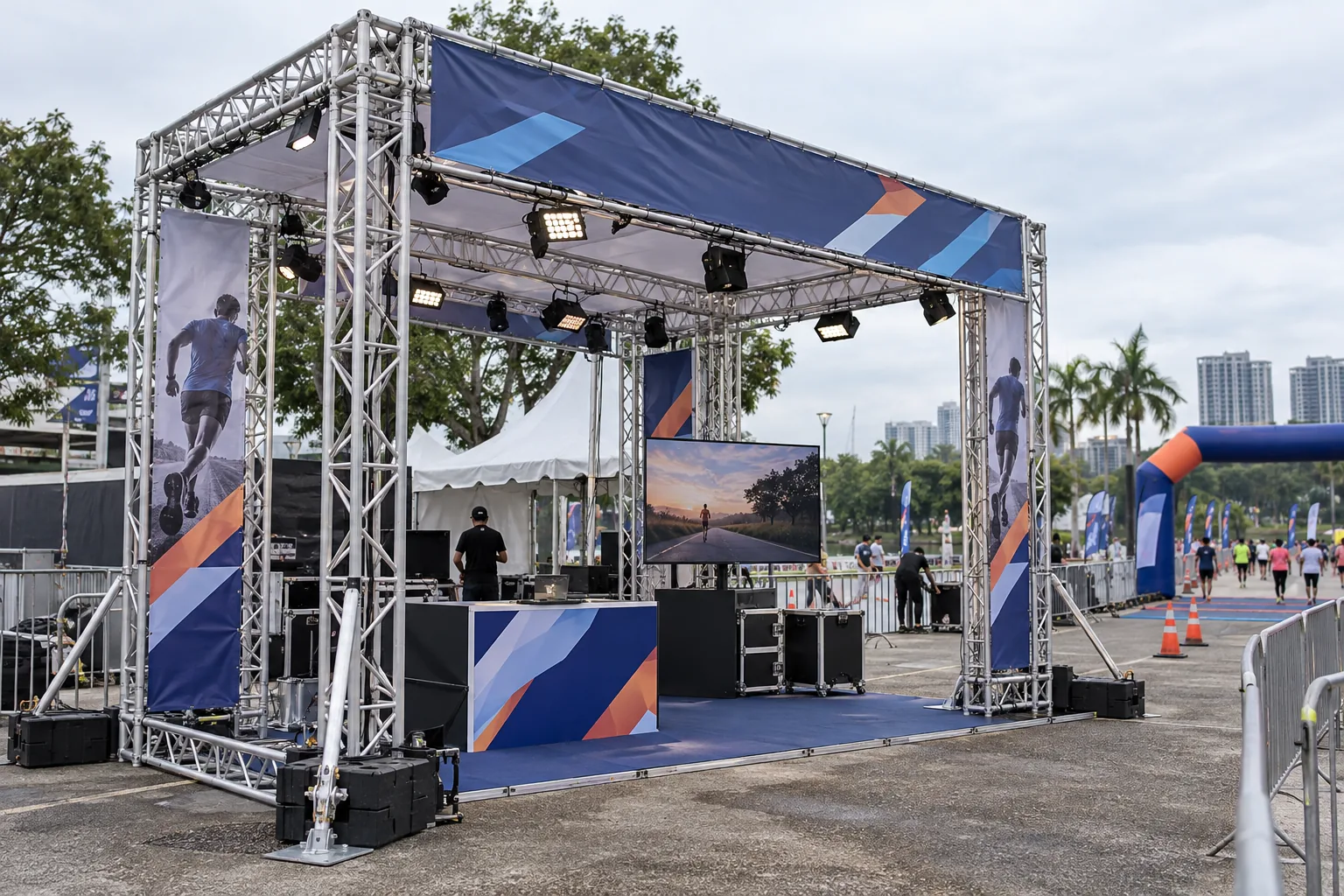

06Sports Sponsor Activation Truss
